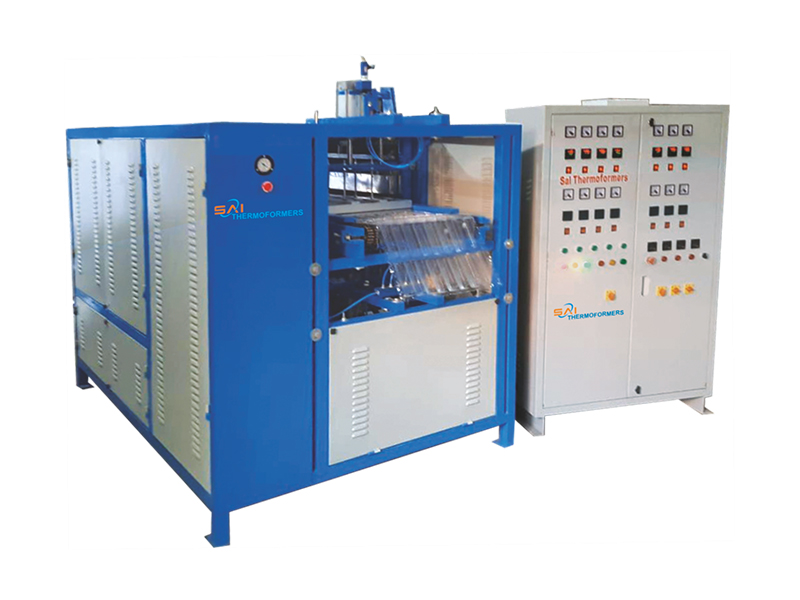

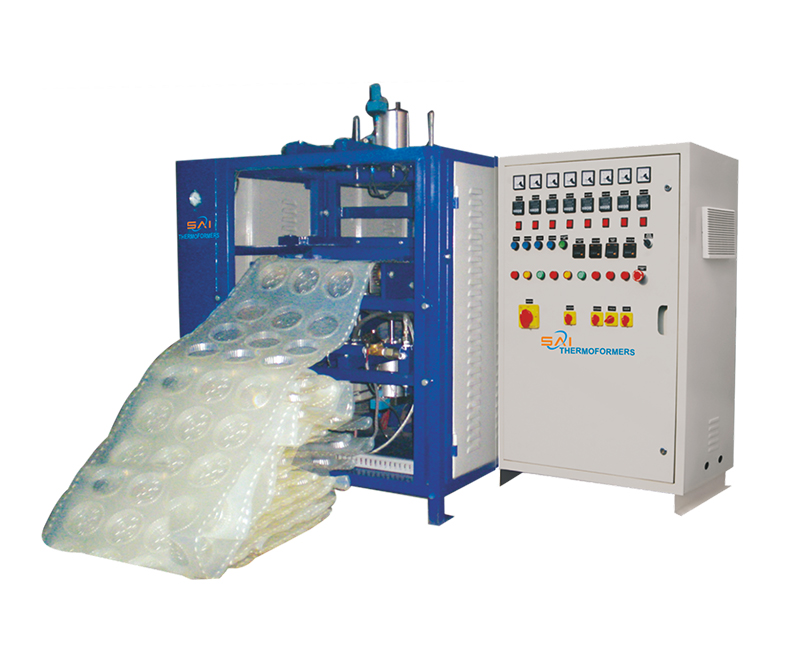

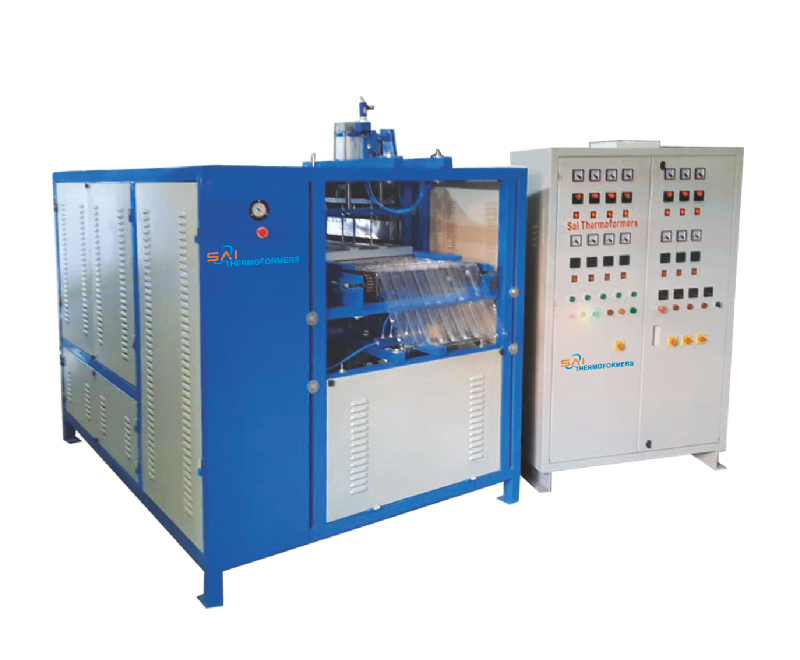

Automatic PP Vacuum Forming Machine

Request Callback
Schedule a Demo
Ask for Price

Technical Specifications

Sl. No. MODEL STF-HPC
1 Forming Area (PP) 410mm. x 510mm. (16” x 20”)
2 Forming Area (HIPS, PVC, PET) 600mm. x 600mm.
3 Chain Movement Gear Box & Motor BONVARIO
4 Safety Devices Emergency Switch on Front Panel
5 Vacuum Pump 1000LMV With Vacuum Tank
6 Heating Elements Ceramic, Make - Hi Heat England
7 Motor - 5HP Make - Crompton ABB
8 Pneumatic Cylinder & Valve Make - Janatics
9 Limit Switch Make - Seimence
10 Chain Duplex, Make - Diamond

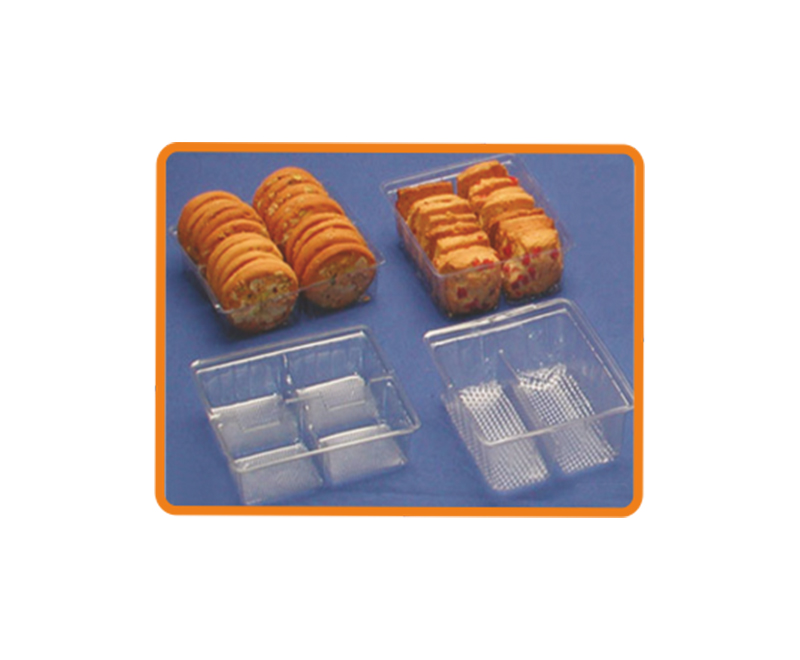

11 Material Used PP, HIPS, PVC, PET
12 Electronic & Electrical Item Make L&T
13 Heat Control PID Make - Udian / Selectron
14 Machine Doors & Control Panel Powder Coated
15 Heating System Top & Bottom
16 Running Load 16kw. - HIPS, PVS, PET
17 Running Load In PP (16” x 20”) 26 kw.
18 Machine Dimension (L x W x H) 95” x 112” x 73”
19 Control Panel Dimension (L x W x H) 18” x 40” x 64”
20 Machine Weight 2000 kgs. ( Approx.)
Delivery: 90 days after confirmation of order
Yes! i am Interested

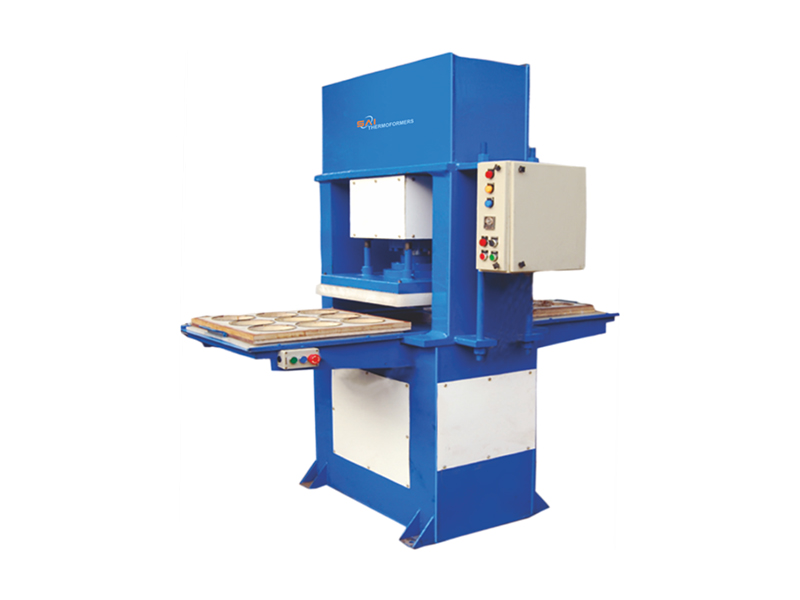

I am interested in Hydraulic Punch Cutting
