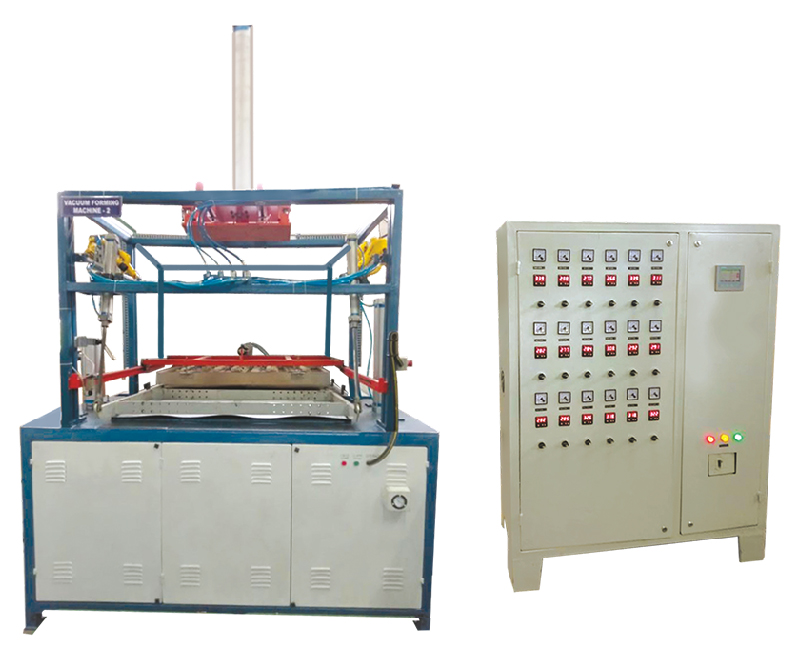

Special Purpose Machine
Briefcase Cell Vacuum Forming Machine Two Side
Automatic Aluminium Fiol Food Container Making Machine Single Cavity
Approx. 7 kg/cm²
Compressed Air Required48” x 96”.
Forming Area ( Min.)ABS, PP, HIPS
Material Used4” to 18”
Max. Forming Depth| Sl. No. | MODEL | STF-SPM |
|---|---|---|
| 1 | Forming Area ( Max.) | Customise |
| 2 | Forming Area ( Min.) | 48” x 96”. |
| 3 | Sheet Size ( Max.) | As Per Mould Size |
| 4 | Max. Forming Depth | 4” to 18” |
| 5 | Max. Tool Load Capacity | 50 Kgs to 350 Kgs. |
| 6 | Forming Method | Vacuum Forming |
| 7 | Sheet Thickness | 1 mm to 4 mm. |
| 08 | Material Used | ABS, PP, HIPS |
| 9 | Average Cycle Time | 30 Sec.to 5 Min. (Depending on type of material & Mould Profile) |
| 10 | Heating Method | Top & Bottom Heating |
| 11 | Heating Control | Individual Four Heater Zone controlled by PDI |
| 12 | Heating Element | Ceramic Heater / Tublar Heater |
| 13 | Vacuum Pump | With Air Tank |
| 14 | Compressed Air Required | Approx. 7 kg/cm² |
| 15 | Pneumatic Cylinder | Make Janatics |
| 16 | Motor | Crompton / ABB |
| 17 | Switches / Contactors | L & T |
| 18 | Limit Switch | Siemence |
| 19 | Blowers | Industrial Type |
